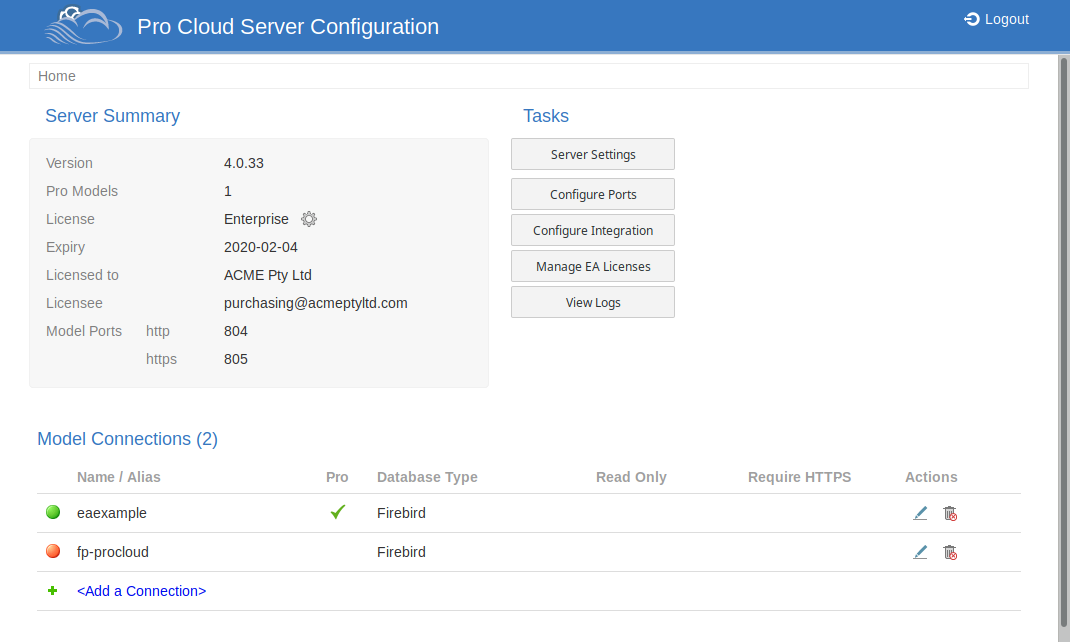

WebConfig - Home Screen

Version

The version number of the Pro Cloud Server which the WebConfig is accessing.

Pro Models

The number of models which currently have Pro Features enabled.

License

The edition of the Pro Cloud Server (based on the license). If no License has been added then an 'Add' link will be displayed here (which will take you to the 'Pro Cloud Server Licenses' screen').

Expiry

The expiry date of the Pro Cloud Server License.

Licensed to

The name of the company which the Pro Cloud Server is licensed to.

Licensee

The email address associated with this license. I.e. The email address which was provided when the License Request was created.

Model Ports

Lists Ports which are currently defined for use by Model Connections.

Server Settings

Provides options to configure the Pro Cloud Server (log level, password, and Cloud Server License), and displays additional server information (log settings, and paths to relevant configuration files and directories).

Configure Ports

View and configure Ports which the Pro Cloud SErver will use for accessing Models.

Configure Integration

Configure the Integration Server and Integration Providers, and bind Integration Providers with Pro Models Connections.

Note, this is only available when using Team Server or Enterprise edition. When using the Token edition, this option can be enabled by adjusting the Token Allocations

Manage EA Licenses

Manage floating license for EA (and EA Add-Ins).

Note, this option is only available when using Team Server or Enterprise edition of the Pro Cloud Server (it is not available when using the Token edition).

View Logs

Navigates to the View Logs page. This page lists the Cloud Server log files. On the View Logs page, click on the View Log icon in the Actions column to view the contents of the log file.

Model Status

Left of the Name / Alias is a status icon. Red indicates that the connection has not been enabled (via the "Enable Access" option), meaning this connection cannot currently be used. Green indicates that the Model Connection is enabled.

Name / Alias

This field displays the name of the model connection. When connecting to a cloud model via EA, this Name / Alias should be entered in the Model Name field.

Pro

This field indicates whether Pro Features are enabled for this model connection. Pro features include the ability to access the Model Connection via WebEA, and the ability to use Integration Plugins (for Confluence, Jira, etc). A green tick indicates that Pro features are enabled, while a blank field indicates they are not.

An alert icon indicates that the "Pro Features" option was enabled, however Pro Features are not currently enabled/accessible for the Model Connection. For example, this could occur if Pro Features were enabled, however the Pro Cloud License has expired. When the alert icon is displayed, check the icon's tooltip for more information.

Database Type

Displays the database type of the model (Firebird, SQL Server, etc).

Read Only

Indicates whether this connection provides Read-Only access to the model.

Require HTTPS

Indicates that the Model Connection can only be accessed via the HTTPS protocol (via a Port which is also configured to use the HTTPS protocol).

Actions

Provides icons to perform the following actions.

Edit - Edit the Model Connection Settings.

Delete - Delete the Model Connection.

Add a Connection

The final item in the list is a link to Add a Connection.
