WebConfig - Configure Ports
The Ports page allows you to configure Ports which can be used for communication with the Pro Cloud Server. A Port must be configured in order to allow access to Cloud Models (via Enterprise Architect or WebEA).
By default, Port 804 is defined for http access and Port 805 for https.
The WebConfig client itself also communicates on one of these defined Ports (as specified in the WebConfig 'settings.php' file). The WebConfig's default configuration uses Port 804 (via http).

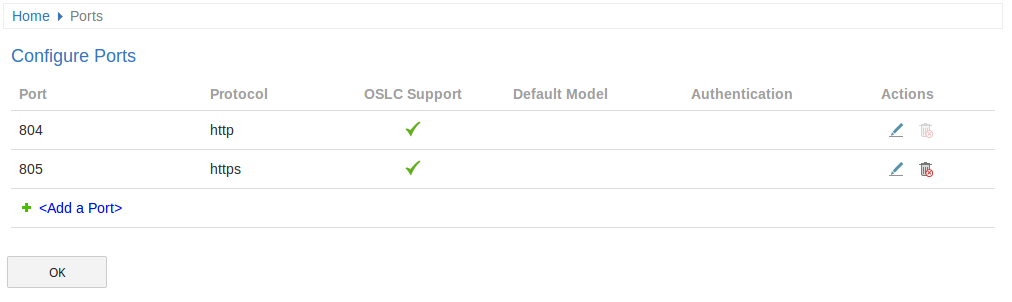

Configure Ports
The Configure Ports list displays the following information and links.
Item |
Description |
See also |
|---|---|---|
|
Port |
The Port Number. |
|
|
Protocol |
The Protocol which can be used on this Port. |
|
|
OSLC Support |
Indicates whether OSLC / WebEA support is enabled. |
|
|
Default Model |
If the port is configured to open a specific default model, it's name is displayed. |
|
|
Authentication |
Indicates what type of Authentication is required (if any). |
|
|
Actions |
Provides options to either Edit or Remove the Port definition. Editing a Port provides the same options as adding a new Port, except the port number cannot be modified. Note, the WebConfig itself uses one of the defined Ports for communication with the Cloud Server (as defined in the WebConfig 'settings.php' file). It is not possible to delete this Port while it is in use. If necessary you can modify the 'settings.php' file so that the WebConfig uses a different Port. You can then delete the Port which the WebConfig was previously using. |
WebConfig - Add or Edit a Port |
|
Add a Port |
The final item in the Port list is a link to Add a Port. |
WebConfig - Add or Edit a Port |
