Generate StateMachine Diagram
When you create a scenario on an element and then generate a StateMachine diagram, a StateMachine is created as a child of the selected element to act as a container for the diagram.
- Each value in the 'State' column is modeled as a State
- The scenario steps become the Transition connectors between the States
- The values of the 'Uses' and 'Results' columns are added as Tagged Values of the Transition connectors
Access
On a diagram or in the Browser window, select an element and use one of these access paths to display the 'Scenarios' tab, then click on
and select 'State'.
|
Ribbon |
Design > Element > Editors > Scenarios (existing scenario) : Edit Design > Element > Editors > Properties Dialog > Scenarios > Scenario Editor |
|
Context Menu |
Right-click on element | Properties | Responsibilities > Scenarios (existing scenario) : Edit (In the 'Element' tab of the Browser window) Right-click on scenario | Show Scenario Editor |
|
Keyboard Shortcuts |
> Scenarios (tab of the Responsibilities Window) > Scenarios ('Properties' dialog) ('Properties' dialog) > Scenarios |
|
Other |
On diagram, right-click on element > Properties > Special Action > Scenarios > Scenario Editor |

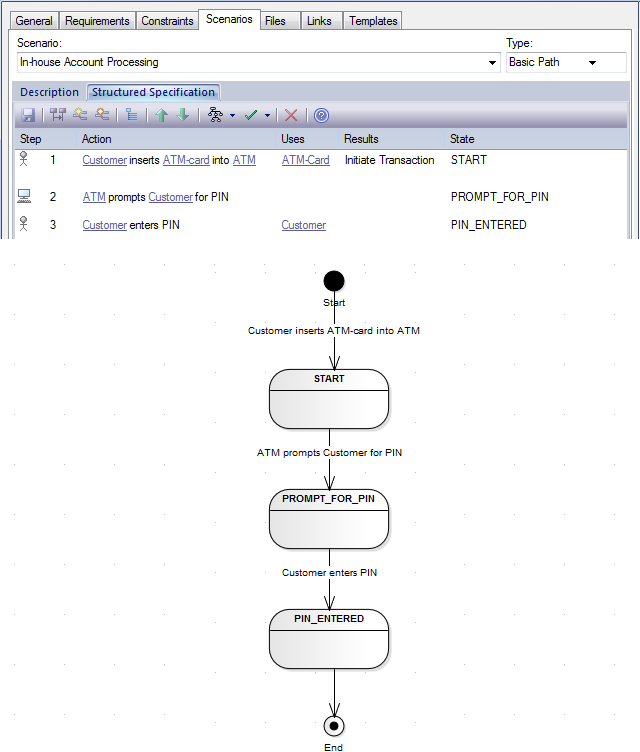

Example
