BABOK^® Guide v3 Tutorial: Create a Model using a Template

Step 1:

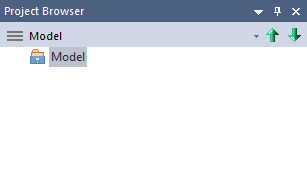

Select a package in the Project Browser.

Step 2:

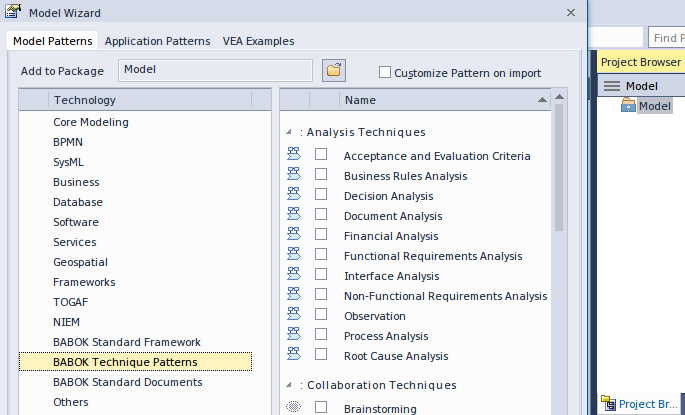

Open the Model Wizard dialog by pressing

   Ctrl+Shift+M.

Under Technology select:

    BABOK Standard Framework

From the Name column select:

   Enterprise.

Click on OK.

Step 3:

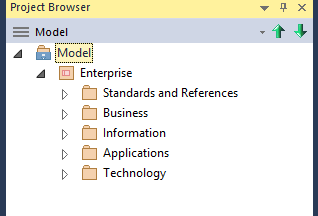

This will start the download process and create a set of packages under the currently selected package.

In the Project Browser you now have a skeletal model ready for use as a basic starting block for creating your own model.

In the next steps you will view some key diagrams provided.

Step 4:

From the Project Browser select the diagram:

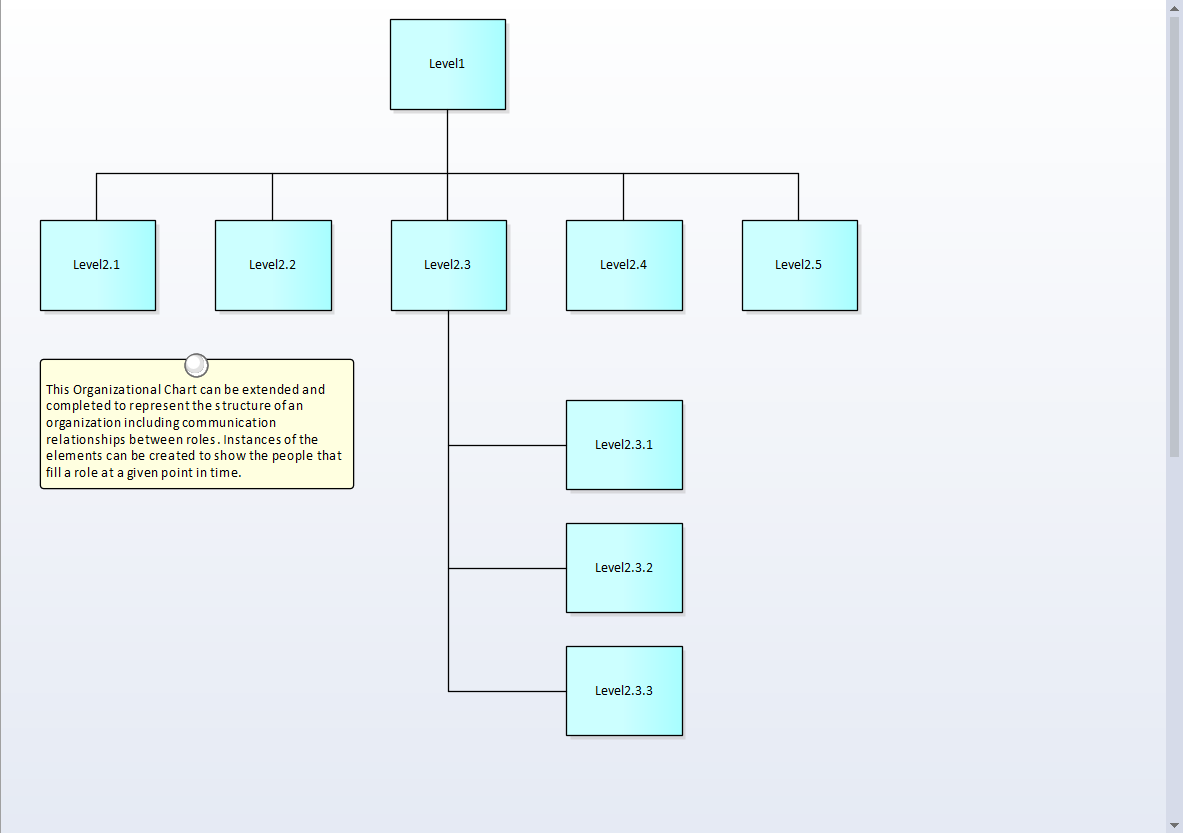

- Model.Enterprise.Business.
Organisation.Organization Chart

This provides a simpler starting point for creating a Organization Chart of the organization you are analyzing.

Step 5:

From the Project Browser select the diagram:

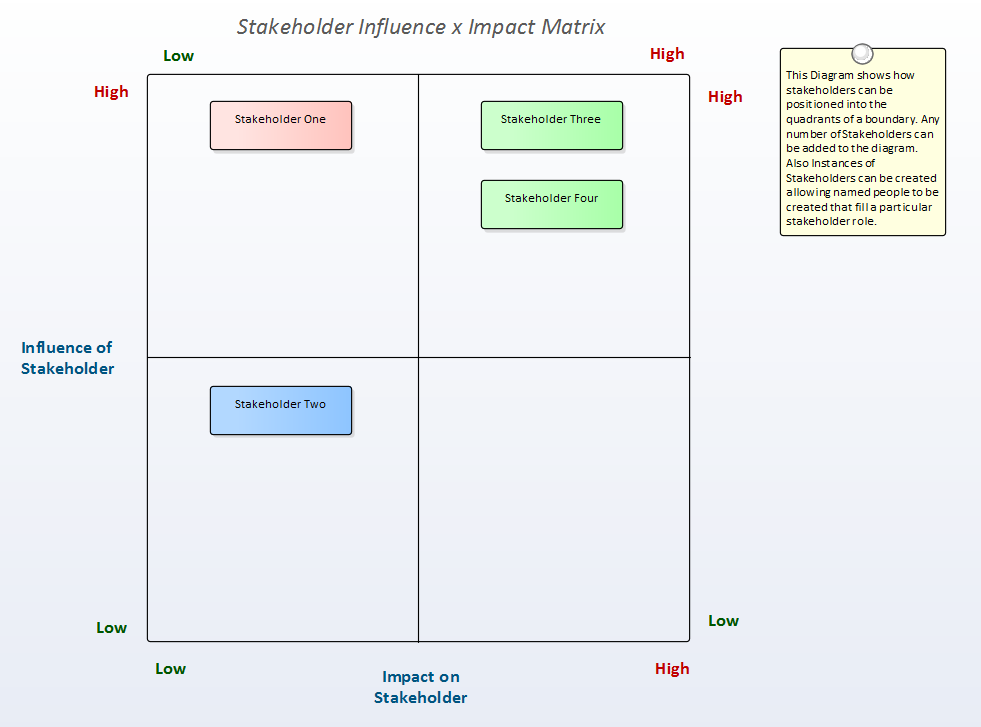

- Model.Enterprise.Business.Stakeholders.
Stakeholder Matrix.Stakeholder Matrix

This provides grid chart defining the stakeholders of the organization you are analyzing.

Select any element on the diagram and press Alt + Enter to access the properties. This will allow you to modify the element to reflect your own organizational structures. This basic template provides a simple starting point for creating your own Organization Chart. Refer to Tools and Techniques for step by step instructions on how to proceed.

Step 6:

From the Project Browser select the diagram:

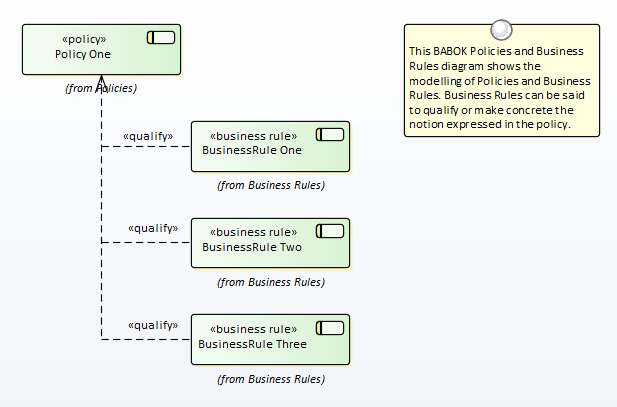

- Model.Enterprise.Business.Policies and Business Rules.Business Rules Analysis

This provides a diagram laying out existing Business Rules and their relationship to Policies.
