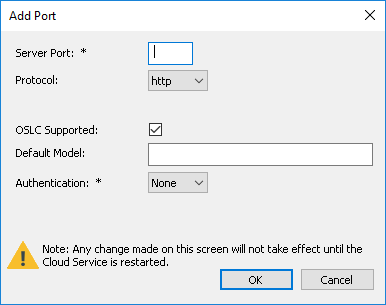

Add a Port Definition

Server Port

Enter the Port number to be used for Cloud Connections.

Each defined Port must be unique and not used by any other service or application on the current machine.  The standard HTTP Port (80) and HTTPS Port (443) are no different; if they are available, the Pro Cloud Server can be configured to use them. You can use the Windows Resource Monitor (which is accessibly via an icon on the Configuration Client 'Ports' tab) to check which Ports are already in use.

Firewall Note: When changing or adding a new Port, check that incoming requests are allowed by the firewall settings at both the local machine and network levels.

Wine Note:  When the service is running on Wine you should not use privileged Ports - those below 1024; under Wine, most applications are only able to listen on ports above 1024.

Protocol

Select the protocol that the port will be configured as, options are:

HTTP - The default value

HTTPS - When this option is selected, you will be presented with four additional checkboxes which control the what versions of TLS (and SSL) are allowed on the given port.

Additional for HTTPS to be configured correctly a file named server.pem, must also exist in the same directory as the configuration file, and it must contain a valid private key / certificate.  For more details on server.pem see the SSL Certificates section.

OSLC Supported

Enable this option to allow OSLC access to Models.

Note, WebEA makes use of OSLC. If you intend to access Models via WebEA then this option should be enabled.

Default Model

Optionally, enter the name of a default model which will be used by OSLC.

Typically OSLC URL's include the model name. If a default model has been specified then the model name can be omitted from the URL.

Authentication

Select the type of authentication that will be required for this Port:

Model - All model connections that use the current port will be forced to request HTTP authorization using the user security defined in the Enterprise Architect model being connected to. Passwords must be explicitly and individually assigned in that model using the Maintain Users procedure; the default administrator password and any passwords imported from Windows Active Directory do not work.

Note, if you are not using SSL to connect, the usernames and passwords will be sent in plain text.

If the model does not have security enabled, the Cloud user is not prompted for a password.

Global - Selecting this option displays an additional Global Model field. In this field enter the name of a model which will be used to provide the security profile to all connections opened with the current port.  This is helpful if you want to provide multiple models but only manage one list of users. Passwords must be explicitly and individually assigned in the reference model using the Maintain Users procedure; the default administrator password and any passwords imported from Windows Active Directory do not work.

Note, if you are not using SSL to connect, the usernames and passwords will be sent in plain text. Global authentication should only be used with the HTTPS protocol.

SERVER_PORT

This option expects a numeric value (whole number) that defines a Port number; there is no default value.

For example, SERVER_PORT=804  states that the Pro Cloud Server service will listen to HTTP connections on port 804.  Each defined port must be unique and not used by any other service or application on the current machine.  The standard HTTP port (80) and HTTPS port (443) are no different, if they are available the Pro Cloud Server can be configured to use them.

Firewall Note: When changing or adding a new port, check that incoming requests are allowed by the firewall settings at both the local machine and network levels.

Wine Note:  When the service is running on Wine you should not use privileged ports - those below 1024. Under Wine, most applications are only able to listen on ports above 1024.

REQUIRE_SSL

This option expects either a value of 0 or 1; the default is 0.

A value of 1 will enforce the use of SSL on the current port; that is, all connections must be performed using HTTPS, which is useful when connections need to be exposed on public networks.

In order for the Pro Cloud Server to be able to successfully configure ports as REQUIRE_SSL=1, a file called server.pem must exist in the same directory as the configuration file, and contain a valid private key / certificate. For more details on server.pem see the SSL Certificates section.

SSL_PROTOCOLS

This option is a pipe delimited list of TLS/SSL protocol versions accepted by the port.  If omitted the default of TLSv1_2 value is assumed. Valid values are "SSLv3", "TLSv1", "TLSv1_1", "TLSv1_2".  For example if a port was to accept versions TLS 1.2 and 1.1 and entry should be:

SSL_PROTOCOLS=TLSv1_1 | TLSv1_2

OSLC_SUPPORT

This option expects either a value of 0 or 1, the default is 1.

A value of 1 defines that connections that use the current port will be able to perform queries using the 'Open Services for Lifecycle Collaboration' standard. This is discussed further in the OSLC Requirements Management topic.

DEFAULT_MODEL

This option expects the alias of a defined database manager, or blank, the default is blank.

By defining a value for this option allows a single model to be exposed on a port, making it possible to use a different port for each model. Model names are discussed further in the Connecting Enterprise Architect to a Cloud Server topic.

MODEL_AUTHENTICATION

This option expects either a value of 0 or 1, the default is 0.

By defining this option as 1, all model connections that use the current port will be forced to request HTTP authorization using the user security defined in the Enterprise Architect model being connected to. Passwords must be explicitly and individually assigned in that model using the Maintain Users procedure; the default administrator password and any passwords imported from Windows Active Directory do not work. Note that if you are not using SSL to connect, the usernames and passwords will be sent in plain text.

If the model does not have security enabled, the Cloud user is not prompted for a password.

This option is mutually exclusive with GLOBAL_AUTHENTICATION.

GLOBAL_AUTHENTICATION

This option expects the alias of a defined database manager, or blank, the default is blank.

By defining this option a single Enterprise Architect model with security enabled can be used to provide the security profile to all connections opened with the current port.  This is helpful if you want to provide multiple models but only manage one list of users. Passwords must be explicitly and individually assigned in the reference model using the Maintain Users procedure; the default administrator password and any passwords imported from Windows Active Directory do not work.

This option is mutually exclusive with MODEL_AUTHENTICATION.

EA_MINIMUM_BUILD

This option expects a numeric value that represents the minimum Enterprise Architect version that can connect to models using this port.  The default is undefined which implies all versions are allowed.

EA_MAXIMUM_BUILD

This option expects a numeric value that represents the maximum Enterprise Architect version that can connect to models using this port.  The default is undefined which implies all versions are allowed.
