Assign Icons To Toolbox Items

How to

To assign an icon to a toolbox item

Step

Action

See also

1

Create a new �stereotype� element in the same toolbox profile as the toolbox item.





2

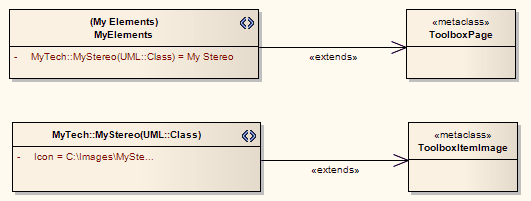

Give the �stereotype� element the same name as the attribute that it is assigning an image to; for example, in the diagram below:



MyTech::MyStereo(UML::Class)





3

Give the �stereotype� element an attribute named Icon with Initial Value set to the full path and file name of the image to be used.

The icon image is a 16x16 pixel bitmap file; for a transparent background, use light grey - RGB(192,192,192).





4

Create an Extends association from the �stereotype� element to a �metaclass� element named ToolboxItemImage.







ToolboxItemImage
