Model Views in MDG Technology for UPDM

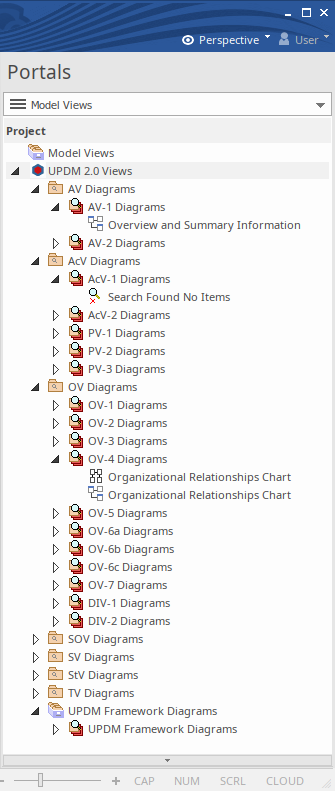

The 'Model Views' tab of the Focus window displays a variety of different views on the model data, providing an alternative to the Browser window. The MDG Technology for UPDM uses this tab as a quick and easy method of locating all of your diagrams in the current model.

To open the 'Model Views' tab, select 'Start > Desktop > Design > Focus > Views'. Expand the appropriate folders and double-click on the required diagram to open it.
