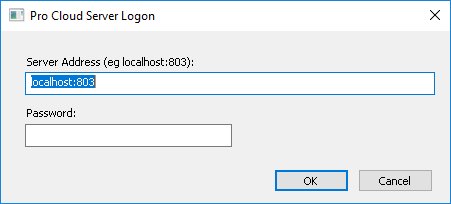

Pro Cloud Server Logon Screen

The Pro Cloud Server Logon screen is the first to be shown when launching the Configuration Client. At a minimum it requires the address and Port of the Pro Cloud Server to connect to.

Pro Cloud Server Logon

Option

Description

Server Address

The Server Address format is:

     <ServerURI>:<Port>

The server URI can be ‘localhost’, an IP address, a DNS name or a machine name; for example, MyCloudServer. If you are working on the Cloud Server, 'localhost' will be sufficient.

Password

Enter the password you defined in Configuration Client Connection Settings, in the Pro Cloud Server Configuration Help topic.

As a security precaution from PCS version 4.1 onwards the default password is:

pcsadm1n

while PCS version 4 and earlier did not define a password.  You can set the password to a new value, as described in the Help topic Extended Server Properties.

OK

Click on this button to log in to the Cloud Configuration Client.
