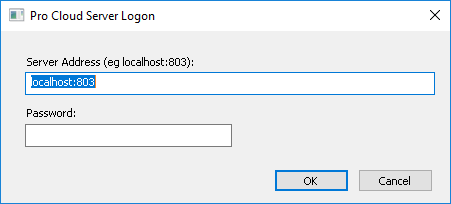

Pro Cloud Server Logon Screen

The Pro Cloud Server Logon screen is the first to be shown when launching the Configuration Client, and at a minimum requires the address and port of the Pro Cloud Server to connect to.

Pro Cloud Server Logon

Option

Description

Server Address

The Server Address format is:

     <ServerURI>:<Port>

The server URI can be ‘localhost’, an IP address, a DNS name or a machine name; for example, MyCloudServer. If you are working on the cloud server, 'localhost' will be sufficient.

Password

Enter the password you defined in Configuration Client Connection Settings, in the Pro Cloud Server Configuration topic. By default this password is blank; you can set it to a new value, as described in the Help topic Global Server Options.

OK

Click on this button to log in to the Cloud Configuration Client.
