WHERE Parameter
The oslc.where Query parameter specifies the conditions that the resources must satisfy; it is similar to the WHERE clause of an SQL statement. This parameter must be appended to the base URI of the Query Capability in Enterprise Architect:
http://<server>/<model_name>/oslc/qc/

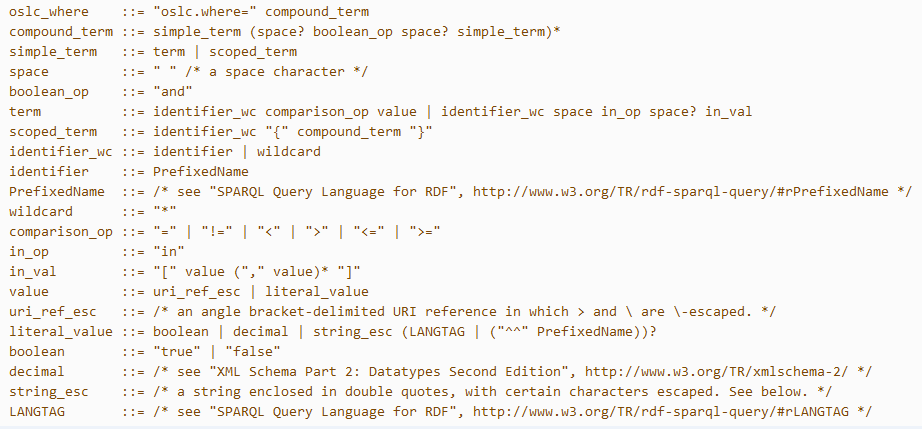

The syntax for the oslc.where Query parameter (defined in BNF grammar and as specified in the OSLC Query Syntax Specification) is:
Examples
These example queries act on a model called firebird_model connected by the Cloud.
Example |
Query |
|---|---|
|
1 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where= dcterms:title="Requirement1" Retrieves all the OSLC properties of all Requirements having the title 'Requirement1'. |
|
2 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where= dcterms:title in ["Requirement1","Requirement2"] Retrieves all the OSLC properties of all Requirements having the title 'Requirement1' or 'Requirement2'. |
|
3 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:title="Requirement1" and dcterms:creator{foaf:name}="User1" Retrieves all the OSLC properties of all Requirements having the title 'Requirement1', created by 'User1'. |
|
4 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:creator{foaf:name}="User1" and dcterms:created<"2014-01-07" Retrieves all the OSLC properties of all Requirements created by 'User1' prior to 7th January 2014. |
|
5 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where= name="Requirement1" Returns an error response, as 'name' is not a valid property in Enterprise Architect. |
|
6 |
Query: http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:created<"01-07-2014" Returns an error response as the value of the property created is not in a valid format. |
