WHERE Parameter
The oslc.where Query parameter specifies the conditions that the resources must satisfy; it is similar to the WHERE clause of an SQL statement. This parameter must be appended to the base URI of the Query Capability in Enterprise Architect:
http://<server>/<model_name>/oslc/qc/

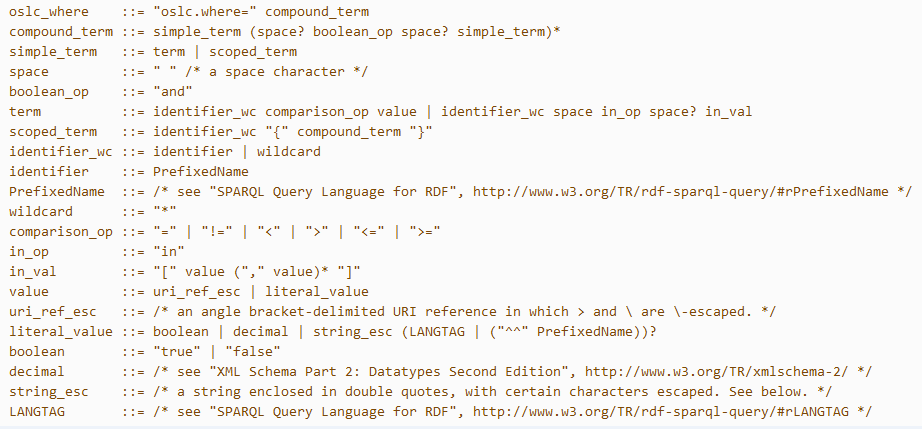

The syntax for the oslc.where Query parameter (defined in BNF grammar and as specified in the OSLC Query Syntax Specification) is:
These example queries act on a model called firebird_model connected by the Cloud:
Query |
Response |
|---|---|
http://localhost:480/firebird_model/oslc/qc/?oslc.where= dcterms:title="Requirement1" |
Retrieves all the OSLC properties of all the Requirements having the title Requirement1.
|
http://localhost:480/firebird_model/oslc/qc/?oslc.where= dcterms:title in ["Requirement1","Requirement2"] |
Retrieves all the OSLC properties of all the Requirements having the title Requirement1 or Requirement2.
|
http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:title="Requirement1" and dcterms:creator{foaf:name}="User1" |
Retrieves all the OSLC properties of all the Requirements having the title Requirement1, created by User1.
|
http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:creator{foaf:name}="User1" and dcterms:created<"2014-01-07" |
Retrieves all the OSLC properties of all the Requirements created by User1 prior to 7th January 2014.
|
http://localhost:480/firebird_model/oslc/qc/?oslc.where= name="Requirement1" |
Returns an error response as name is not a valid property in Enterprise Architect.
|
http://localhost:480/firebird_model/oslc/qc/?oslc.where=dcterms:created<"01-07-2014" |
Returns an error response as the value of the property created is not in a valid format.
|
Notes
| · | Dates must be specified in the format YYYY-MM-DD |
| · | This facility is available through the Corporate, Business and Software Engineering, Systems Engineering or Ultimate editions |
Learn more
| · | OSLC WHERE (Online Resource) |
