PROPERTIES Parameter
Enterprise Architect supports a technique called Selective Properties, through which clients can retrieve selected OSLC properties of a Requirement. This technique accepts a partial representation of the OSLC properties - that is, all properties or only some of them. The base URI for accessing Selective Properties of a Requirement in Enterprise Architect is :
http://<server>/<model_name>/oslc/re/<requirement_GUID>/

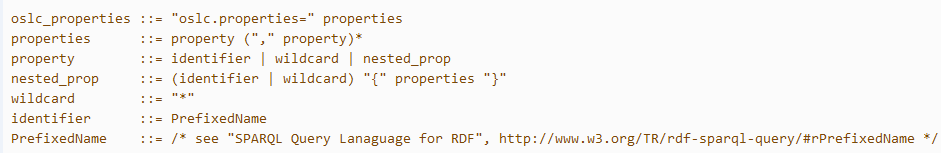

The syntax for the oslc.properties Query parameter (defined in BNF grammar and as specified in the OSLC Core Specification) is:
These example queries act on a Requirement with the GUID {7104C13D-841C-4068-B7EE-FB998C5BA4B7} in a model called firebird_model connected by the Cloud:
Query |
Response |
|---|---|
http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=* |
Retrieves all the OSLC properties of the specified Requirement.
|
http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=dcterms:title,dcterms:creator{foaf:name} |
Retrieves the OSLC properties title and creator of the specified Requirement.
|
http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=dcterms:title,dcterms:creator{} |
Returns an error response as the property creator is incomplete; it should be: dcterms:creator{foaf:name}
|
Notes
| · | This facility is available through the Corporate, Business and Software Engineering, Systems Engineering or Ultimate editions |
