Generate State Machine Diagram
When you create a scenario on an element and then generate a State Machine diagram, a StateMachine is created as a child of the selected element to act as a container for the diagram.
| · | Each value in the State column is modeled as a State |
| · | The scenario steps become the Transition connectors between the States |
| · | The values of the Uses and Results columns are added as Tagged Values of the Transition connectors |
Access On a diagram or in the Project Browser, right-click on element and select:
Properties > Scenarios > Structured Specification:
| State or
Properties Page | Scenarios > Structured Specification: | State

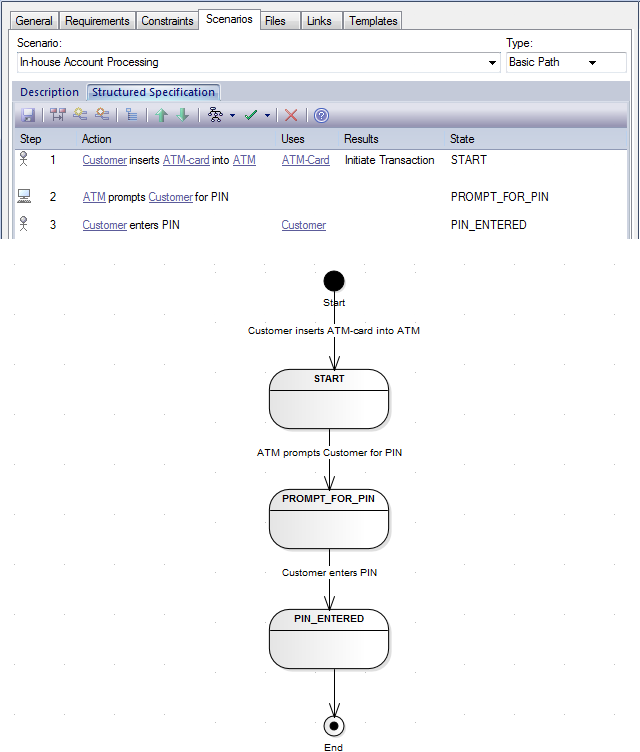

Example
Learn more
