Generate Activity Diagram

When you create a scenario on an element, and then generate an Activity diagram from the scenario, an Activity is generated as a child of the selected element to act as a container for the diagram.

·Each scenario step is modeled as an Activity
·The values of the Uses, Results and State columns for each step are added as memo Tagged Values of the corresponding Activity



Access     On a diagram or in the Project Browser, right-click on element and select:

Properties > Scenarios > Structured Specification: Scengendiag | Activity or
Properties Page | Scenarios > Structured Specification: Scengendiag | Activity

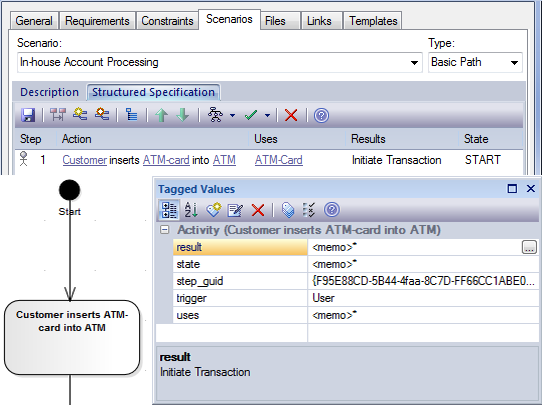

Example

ScenarioActivityD

Diagram Types

There are three additional variations of the Activity diagram that you can generate.

Diagram

Detail

See also

Activity with ActivityParameter
·The values of the Uses and Results columns are modeled as ActivityParameters
·The ActivityParameters are added to the Project Browser and not to the diagram
·The value of the State column is added as a Tagged Value of each Activity



ActivityParameter

Activity with Action
·The scenario steps are modeled as Actions
·The values of the Uses, Results and State columns are added as Tagged Values of  each Action


Action

Activity with ActionPin
·The scenario steps are modeled as Actions
·The values of the Uses and Results columns are modeled as Input Pins and Output Pins respectively
·ActionPins are added to the Project Browser and not to the diagram
·The value of the State column is added as a Tagged Value of each Action


Action Pin
