SysML Requirements Toolbox

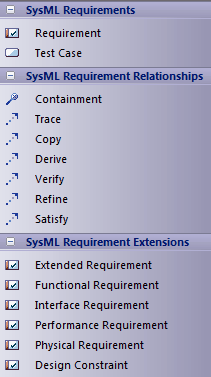

These pages provide the SysML elements to build SysML Requirements models.
Access View | Diagram Toolbox: More Tools | SysML 1.2 | SysML 1.1 Requirements
Page |
Item |
Action |
|---|---|---|
SysML Requirements |
Requirement |
Specify the capabilities of the system, or the conditions that it should satisfy.
|
Test Case |
Describe the verification of a Requirement through methods of inspection, analysis, demonstration or testing.
|
|
SysML Requirement Relationships |
Containment |
Graphically display ownership of one element within a parent element.
|
Trace |
Declare a trace relationship between a SysML Requirement and another SysML element.
|
|
Copy |
Declare a copy of one SysML Requirement by another.
|
|
Derive |
Derive a SysML Requirement from another.
|
|
Verify |
Declare a verification of a SysML Requirement by another SysML element.
|
|
Refine |
Declare a refinement of a SysML Requirement by another SysML element.
|
|
Satisfy |
Declare that the SysML Requirement is satisfied by another SysML element.
|
|
SysML Requirement Extensions |
Extended Requirement |
Extend a SysML Requirement with additional Tag properties.
|
Functional Requirement |
Declare a SysML Requirement that describes the operation, or behavior, that the system must perform.
|
|
Interface Requirement |
Declare a SysML Requirement that describes how the system connects, or interfaces with, other systems.
|
|
Performance Requirement |
Declare a SysML Requirement that describes how the system performs against defined capabilities or conditions.
|
|
Physical Requirement |
Declare a SysML Requirement that describes the physical characteristics, or physical constraints, of the system.
|
|
Design Requirement |
Declare a SysML Requirement that specifies a constraint on the implementation of the system.
|
