Getting Started
MOF diagrams are Class diagrams that are contained in packages with a metamodel stereotype.
How to
To create a MOF diagram
Step |
Action |
See also |
|---|---|---|
1 |
Create a package to contain your MOF elements.
|
|
2 |
Double-click on the package name to display the Properties dialog.
|
|
3 |
In the Stereotype field type the value metamodel.
|
|
4 |
Click on the OK button.
|
|
5 |
Right-click on the package in the Project Browser and select the Add | Add Diagram context menu option. Create a Class diagram (the default diagram).
|
|
6 |
Give your MOF Class diagram an appropriate name.
|
|
7 |
In the Toolbox, select the More tools | Metamodel menu option and add the required Metamodel elements to the diagram.
|
Example

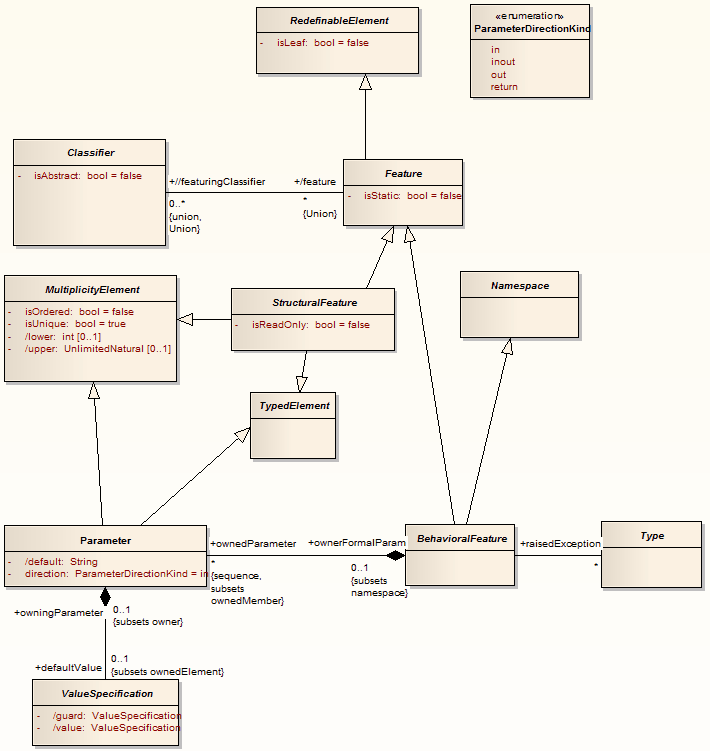

The following is an example of a MOF diagram. A MOF diagram can typically contain Package, Class, Enumeration and Primitive elements, and Generalization, Association, Compose and Aggregate relationships.
