BPMN 2.0 Choreography Toolbox Pages
The BPMN 2.0 Choreography pages of the Diagram Toolbox enable you to create BPMN elements and relationships on Choreography diagrams in BPMN 2.0 and BPEL formats.
Access View | Diagram Toolbox: More tools | BPMN 2.0 | BPMN 2.0 Choreography
Page |
Item |
Use to |
|---|---|---|
BPMN 2.0 Choreography |
Choreography Model |
Extend a composite Activity that defines a Choreography process.
|
Choreography |
Extend an Activity element to represent a process unit of information exchange between Participants. Enterprise Architect currently supports two to four participant bands within one Choreography Activity/Task.
|
|
Start Event |
Define the initiating event in a process.
|
|
Intermediate Event |
Define an intermediate event in a process.
|
|
End Event |
Define the terminating event in a process.
|
|
Gateway |
Define a decision point in a business process. If a condition is true then processing continues one way; if false, then another.
|
|
Message |
Represent the contents of a communication between two Participants.
|
|
Pool |
Extend a Partition element to logically organize an Activity.
|
|
Text Annotation |
Create a comment.
|
|
BPMN 2.0 Choreography Connectors |
Sequence Flow |
Define the order of activity in a Choreography.
|
Association |
Link the information and Artifacts with BPMN graphic elements.
|
|
Message Flow |
Extend a Control Flow relationship to define the flow of communications in the process.
|

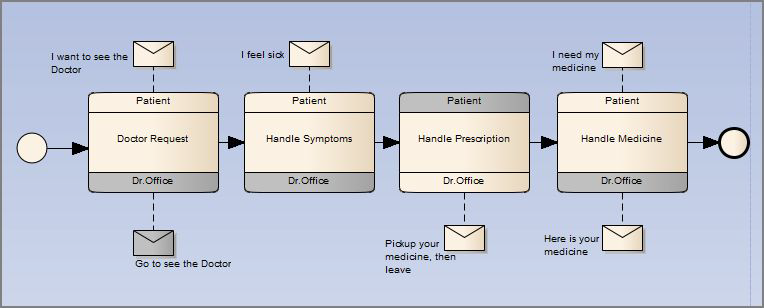

Example of a BPMN 2.0 Choreography Diagram:
Notes
| • | The appearance and specification of some elements and connectors are defined by Tagged Values |
Learn more
Learning Center topics
| • | (Alt + F1) | Modeling Languages | Business | BPMN | Choreography |
| • | (Alt + F1) | Business Modeling | BPMN | Choreography Modeling |
