Comments in WebEA
A summary of comments made against Enterprise Architect's objects can be accessed within WebEA, allowing you to view any ad-hoc comments, notes or reminders, all from the convenience of your web browser.
When enabled, Comments can be accessed via the 'Comments' tab on the Collaborate screen, which is accessible by the speech bubble icon in the header.
Comment Features

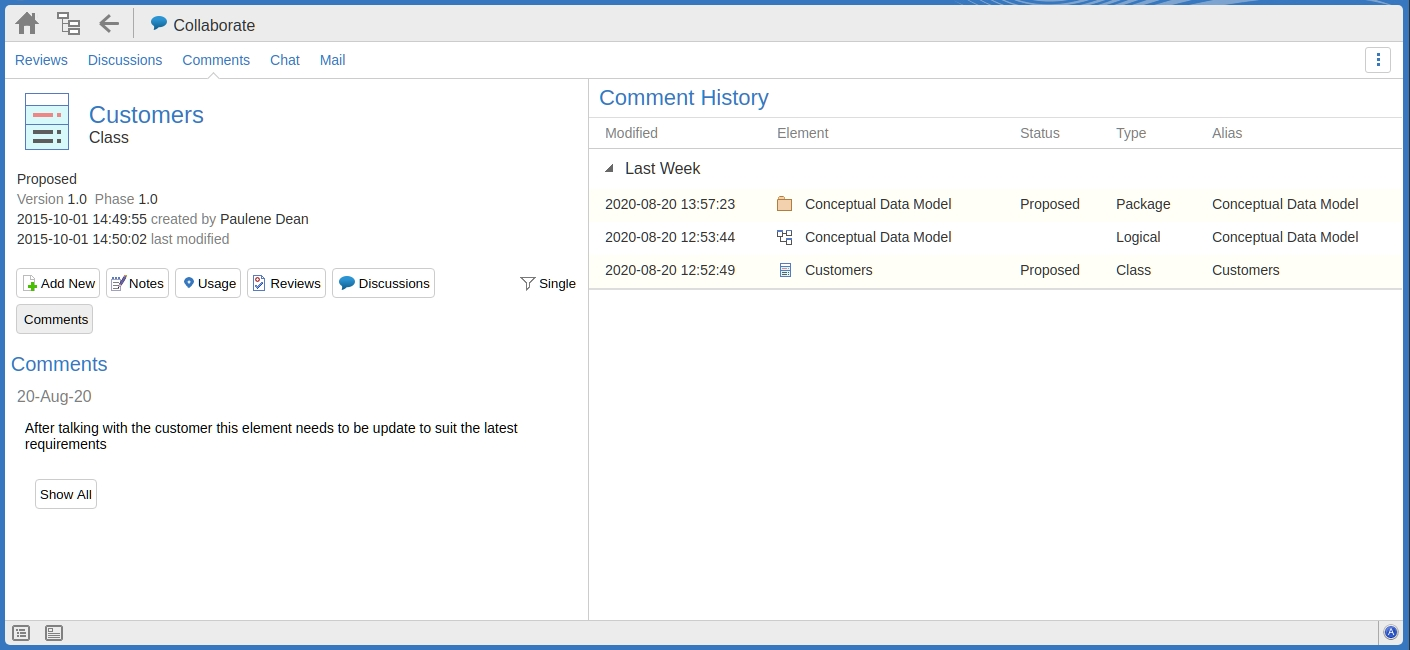

The 'Comment' tab of the Collaborations window provides these features and options.
|
Comment History |
The right hand side of the Comment window displays a summary of comments made within the model, organized by date. The details displayed will included the date/time of the comment, element's name, status, type and alias. Selecting an object in the list will display its details in the properties area (on the left hand side). |
|
Properties and Comments |
The left hand side of the Comment window displays the main properties of the selected object along with the comments that have been added against this object. |
|
Comment Timeframe |
Click on the Comment Timeframe button to select the timeframe for the recent items in the Comment History list.
|
