Model Views in MDG Technology for UPDM

The Model Views Portal displays a variety of different views on the model data, providing an alternative to the Browser window. The MDG Technology for UPDM uses this window as a quick and easy method of locating all of your diagrams in the current model.

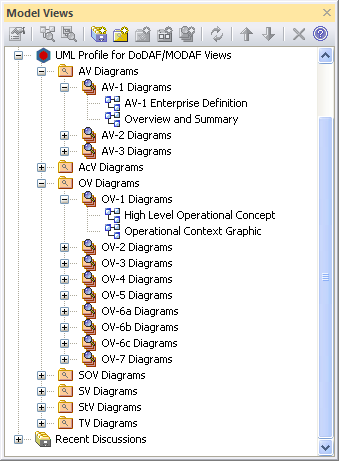

UPDM model views in Sparx Systems Enterprise Architect.

To open the Model Views Portal, select 'Explore > Portals > Model Views'. Expand the appropriate folders and double-click on the required diagram to open it.
