Script Group Properties
When you create a script you develop it within a script group, the properties of which determine how that script is to be made available to the user - through the Project Browser context menu to operate on objects of a specific type, or through a diagram context menu. You create a Script Group using the first icon on the 'Scripts' tab toolbar.
Access
|
Ribbon |
Specialize > Tools > Scripting > Scripts > right-click on [Group name] > Group Properties |

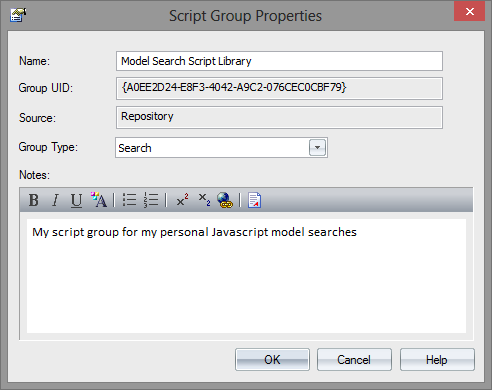

Define the Script Group Properties
Field/Button |
Action |
See also |
|---|---|---|
|
Name |
Type in the name of the script group. |
|
|
Group UID |
(Read only) The automatically assigned GUID for the group. |
|
|
Source |
(Read only) The location of the template used to create the script. |
|
|
Group Type |
Click on the drop-down arrow and select the type of script contained in the group; this can be one of:
|
Package Context Menu Workflow Scripts Model Search Diagram Context Menu |
|
Notes |
Type in any comments you need regarding this script group. |
) General model scripts
) Scripts that are listed in and can be executed from the Project Browser 'Scripts' context menu option
) Scripts executed by Enterprise Architect's workflow engine; you can create only VB scripts of this type
) Scripts that can be executed as model searches; these scripts are listed in the 'Search' field of the
) Scripts that can be executed from the 'Scripts' submenu of the diagram context menu
