Interrupt Flow

Description

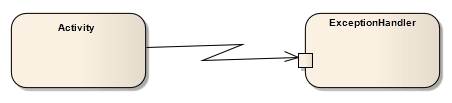

The Interrupt Flow is a connection used to define the two UML concepts of connectors for Exception Handler and Interruptible Activity Region. An Interrupt Flow is a type of activity edge. It is typically used in an Activity diagram, modeling an active transition.

Toolbox icon

Learn more

• Exception Handler
• Interruptible Activity Region
• Activity diagram


OMG UML Specification:

The OMG UML specification (UML Superstructure Specification, v2.1.1, p.327) states:

An activity edge is an abstract class for directed connections between two activity nodes.
