SoaML Toolbox Pages

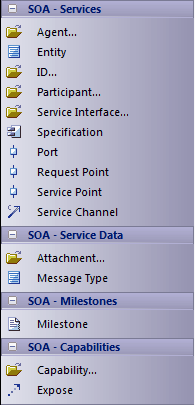

You can create the elements and relationships of the SoaML model using the 'SoaML' pages of the Diagram Toolbox. Each of the two SoaML diagram types has a separate set of pages, although the last five (SOA-specific) pages in the two sets are identical.

Access

Ribbon

Design > Diagram > Toolbox > More tools > SoaML Component, or SoaML Sequence

Keyboard Shortcuts

Alt+5 : More tools | SoaML Component, or SoaML Sequence

Other

Diagram caption bar | Click the icon to display the diagram toolbox | More tools | SoaML Component, or SoaML Sequence

Toolbox Pages

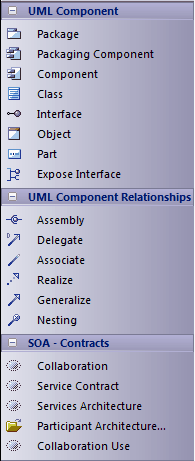

SoaML Component Diagram Toolbox

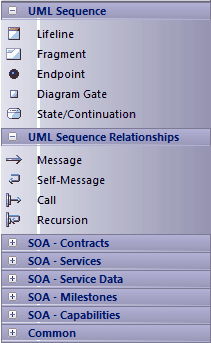

SoaML Sequence Diagram Toolbox
