Add-In Menu

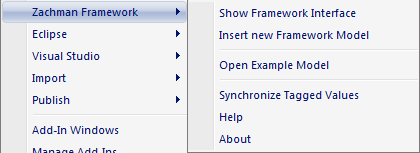

The Zachman Framework sub-menu is available from the Extensions menu on the main menu bar.

Menu Options

Option	Action	See also
Show Framework Interface	Open the Zachman Framework interface diagram.
Insert New Framework Model	Create a new Zachman Framework template model under the selected Package.
Open Example Model	Load the example Zachman Framework model.
Synchronize Tagged Values	Add missing Tagged Values to all elements in the model that require them. Select this option: Whenever a new element is created by any means other than directly dropping the element from the Zachman Framework Toolbox page Before using a new version of the Add-In, to update the Tagged Values of elements in existing models to the latest version of the Zachman Framework profile	Synchronize Tagged Values and Constraints
Help	Display the MDG Technology for Zachman Framework Help.
About	Display the version information for the MDG Technology for Zachman Framework.

Notes

If either the 'Extensions' menu or the 'Zachman Framework Technology' sub-menu is not visible after installing the Zachman Framework Add-In:
- Select 'Extensions | Manage Add-Ins' and select the 'Zachman Framework Load on Startup' checkbox on the 'Manage Add-Ins' dialog, or
- Reset Enterprise Architect's menus by selecting 'View | Workspaces and Commands > Menu Sets' and select the 'Complete' menu set
