Local Pre/Post Conditions

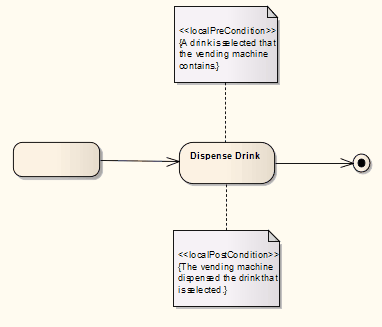

Actions can be further defined with pre-condition and post-condition notes, which constrain an Action's entry and exit.
Attach a constraint to an Action
Step |
Action |
|---|---|
1 |
Right-click on the Action and select the Add | Constraint context menu option. A Note is created on the diagram, connected to the Action.
|
2 |
Right-click on the Note and select the View Properties context menu option. The Constraint dialog displays.
|
3 |
In the Constraint Type field, click on the drop-down arrow and select the required constraint type.
|
4 |
In the Constraint field, type the text for the constraint.
|
5 |
Click on the OK button to save the constraint.
|
