Apache Tomcat Server

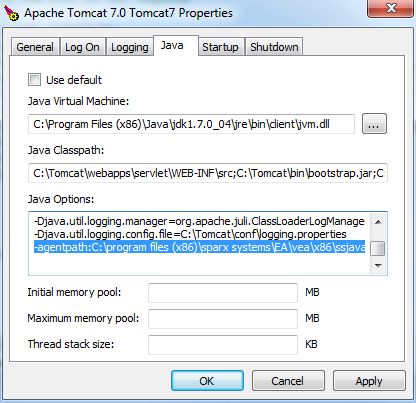

The Apache Tomcat Server can be configured for debugging using the Java debugger in Enterprise Architect. This example shows the configuration dialog for Apache Tomcat 7.0 on a PC running Windows 7.
These three points are important:
| · | The Java Virtual Machine specifies the runtime from an installation of the Java JDK |
| · | The source path to any servlet to be debugged is added to Java Classpath; in this case we add the path to the Tomcat servlet: c:\tomcat\webapps\servlet\WEB-INF\src |
| · | The Java Options include the path to the Sparx Systems debugging agent: -agentpath:c:\program files (x86)\sparx systems\vea\x86\ssjavaprofiler32 |
