Reporting State Transitions
This section describes how you can generate Sequence diagrams that show transitions in state as a program executes.
Use to

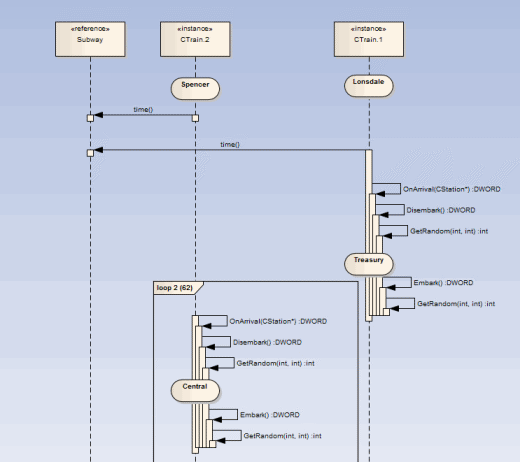

| · | Generate Sequence diagrams that report user-defined transitions in state as a program executes (as shown in the example generated diagram below) |
Topic |
Link |
|---|---|
Create a State Machine under the Class to be reported.
|
|
Set the constraints against each State to define the change in state to be reported. |
