Create BPEL 2.0 Model Structure

A BPEL 2.0 model consists of a BPEL Process (containing a BPEL diagram and mappable BPMN 2.0 constructs) and other supporting elements (like BPMN 2.0 Assignment, BPMN 2.0 Operation) required for generating a BPEL 2.0 code.

A sample BPEL 2.0 Package structure can be created in the Project Browser, using the Select Model(s) (Model Wizard) dialog. You can use this Package structure as a template for developing your BPEL Process.

Access

·Project Browser | Right-click on Package | Add a Model using Wizard, or
·Project Browser toolbar: New Model from Pattern



Create a BPEL 2.0 Package structure as a starting point for developing a BPEL Process

Step

Action

See also

1

Select the root node or a Package in the Project Browser.





2

Click on the New Model from Pattern icon in the Project Browser toolbar.



Project Browser Toolbar

3

Select the value BPMN 2.0 in the Technology section.



Model Wizard

4

Check the option BPEL 2.0 Model in the Name section.





5

Click on the OK button to create the sample BPEL 2.0 Package structure.

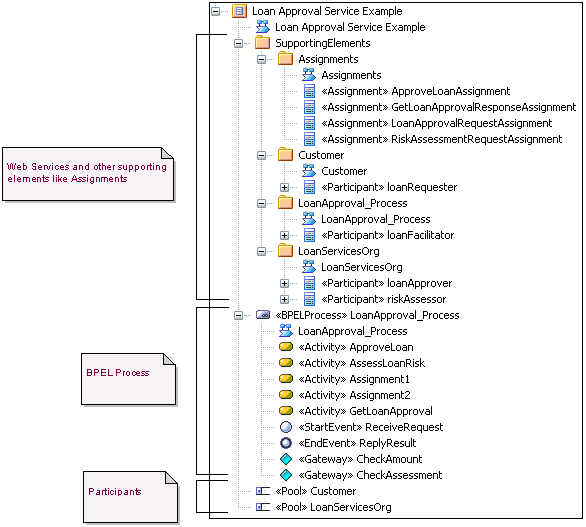

Example BPEL 2.0 Package Structure

The BPEL Process LoanApproval_Process acts as container for the BPEL diagram and elements. The SupportingElements Package contains supporting components like Assignments and Web Service Operations.

BPEL Structure
