Create BPEL 1.1 Model Structure

A BPEL 1.1 model consists of a BPEL Process ( containing a BPEL diagram and mappable BPMN 1.1 constructs ) and other supporting elements ( like BPMN 1.1 Assignment, BPMN 1.1 Web Service ) required for generating BPEL 1.1 code. A sample BPEL 1.1 Package structure can be created in the Project Browser, using the Select Model(s) (Model Wizard) dialog. You can use this Package structure as a template for developing your BPEL Process.

Access

·Project Browser | Right-click on Package | Add a Model using Wizard ( or )
·Project Browser toolbar: New Model from Pattern

Create a new BPEL 1.1 Package structure as a starting point for developing a BPEL Process

Step

Action

See also

1

Select the root node or a Package in the Project Browser.





2

Click on the New Model from Pattern icon in the toolbar.



Project Browser Toolbar

3

Select the value BPMN 1.1 in the Technology section.



Model Wizard

4

Check the option BPEL 1.1 Model in the Name section.





5

Click on the OK button to create the sample BPEL 1.1 Package structure.

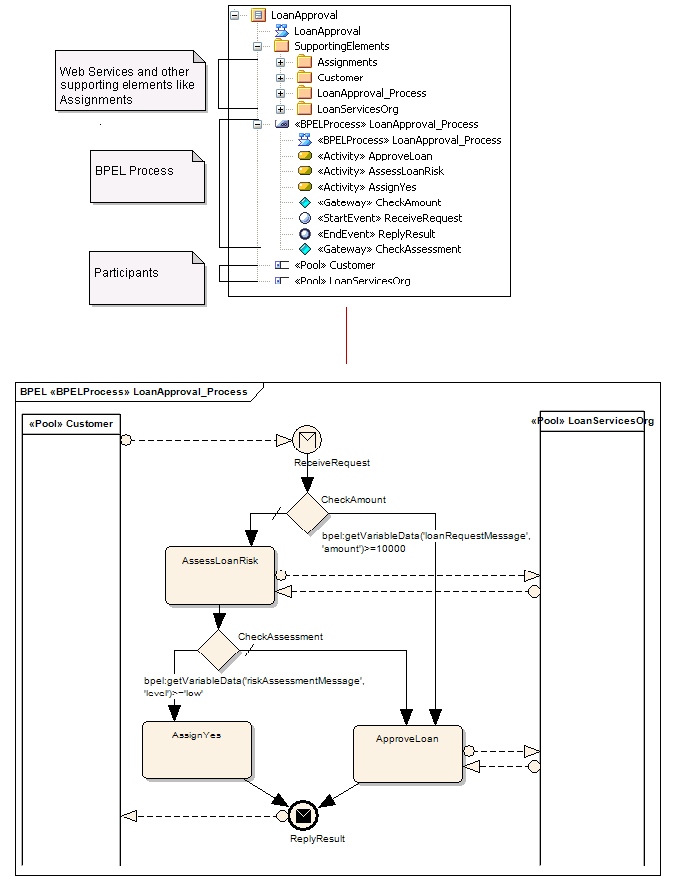

Example BPEL 1.1 Package Structure:

The BPEL Process LoanApproval_Process acts as container for the BPEL diagram and elements. The SupportingElements Package contains supporting components like Assignments and Web Services.

BPELStructure
