Example Deployment Diagram

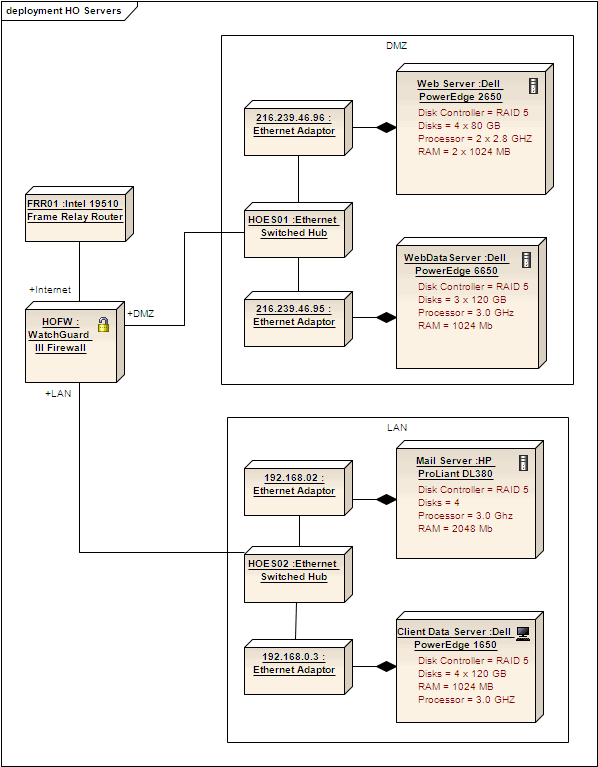

This is a simple Deployment diagram, representing the arrangement of servers at a head office.
The servers are represented by Nodes linked by either simple or aggregate Association relationships.

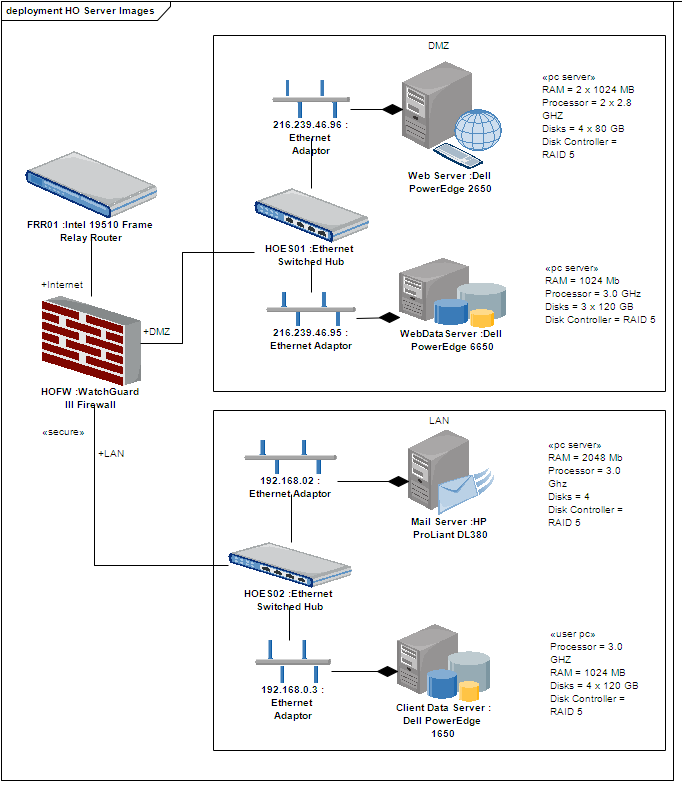

Deployment diagrams are ideal for using alternative images for the objects that the elements represent. Such images can be substituted for the elements in the diagram, as shown below:
