Example Component Diagram

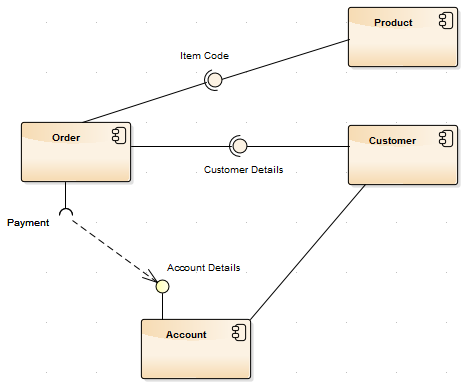

This diagram demonstrates a number of components and their inter-relationships.
Assembly connectors connect the provided interfaces supplied by Product and Customer to the required interfaces specified by Order. A Dependency relationship maps a customer's associated account details to the required interface Payment, also specified by Order.
