Example Use of Collection Classes
Consider the following source code:
class Class1
{
public:
Class1();
virtual ~Class1();
CMap<CString,LPCTSTR,Class3*,Class3*> att;
Vector<Class2> *att1;
TemplatedClass<class1,class2> *att2;
CList<Class4> *att3;
};
class Class2
{
public:
Class2();
virtual ~Class2();
};
class Class3
{
public:
Class3();
virtual ~Class3();
};
class Class4
{
public:
Class4();
virtual ~Class4();
};
template<class TParam1, class TParam2>
class TemplatedClass
{
public:
TemplatedClass() {
}
virtual ~TemplatedClass() {
}
};

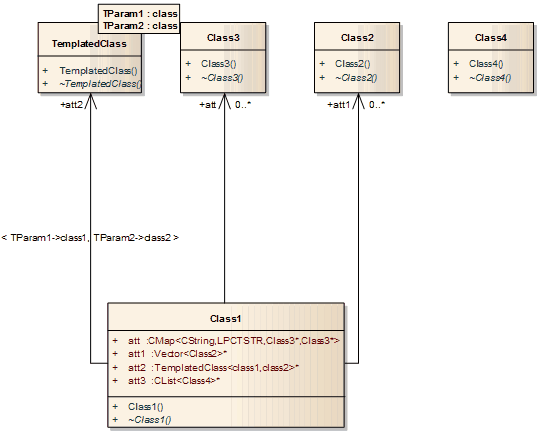

If this code is imported into the system with default import options, this diagram is generated:

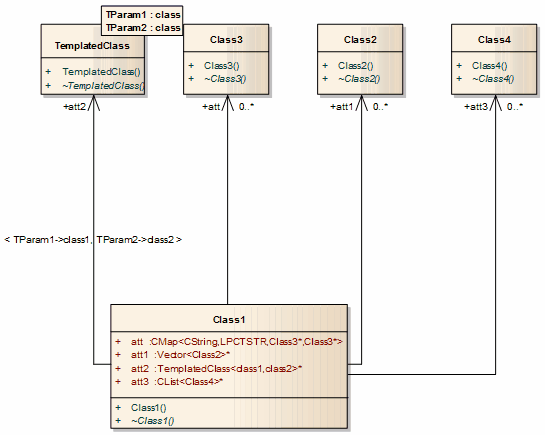

If, however, you enter the value CList<#Type#> in the Additional Collection Classes field in the language options page (C#, Java, C++), an Association connector is also created to Class 4:
