Please note : This help page is not for the latest version of Enterprise Architect. The latest help can be found here.

PROPERTIES Parameter

Enterprise Architect supports a technique called Selective Properties, through which clients can retrieve selected OSLC properties of a Requirement. This technique accepts a partial representation of the OSLC properties - that is, all properties or only some of them. The base URI for accessing Selective Properties of a Requirement in Enterprise Architect is :

 http://<server>/<model_name>/oslc/re/<requirement_GUID>/

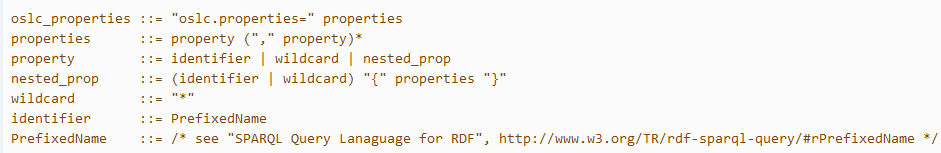

The syntax for the oslc.properties Query parameter (defined in BNF grammar and as specified in the OSLC Core Specification) is:

Properties_syntax


These example queries act on a Requirement with the GUID {7104C13D-841C-4068-B7EE-FB998C5BA4B7} in a model called firebird_model connected by the Cloud:

Query

Response

http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=*

Retrieves all the OSLC properties of the specified Requirement.



http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=dcterms:title,dcterms:creator{foaf:name}

Retrieves the OSLC properties title and creator of the specified Requirement.



http://localhost:480/firebird_model/oslc/re/{7104C13D-841C-4068-B7EE-FB998C5BA4B7}/?oslc.properties=dcterms:title,dcterms:creator{}

Returns an error response as the property creator is incomplete; it should be:

dcterms:creator{foaf:name}



Learn more

•OSLC PROPERTIES  (Online Resource)
