Create a View
Create a Database View
Step |
Action |
See also |
|---|---|---|
1 |
On the Data Modeling page of the Toolbox (More tools | Data Modeling), drag the View icon onto your Data Modeling diagram.
|
|
2 |
If the View Properties dialog does not immediately display, double-click on the element.
|
|
3 |
From the Database drop-down list, select the target DBMS to model. The default database displays if it has already been set. |
|
4 |
Click on the OK button.
|
|
5 |
To rename the View, select the element, press F2 and type the new name.
|
|
Create a View definition
Step |
Action |
See also |
|---|---|---|
1 |
Create a Dependency connector from the View to the table or tables on which the View depends.
|
|
2 |
Double-click on the View to display the Properties dialog. The tables are now listed in the Dependencies field.
|
|
3 |
In the View definition field, type the full view definition. The code editor provides Intelli-sense for basic SQL keywords and functions. |
|
4 |
Click on the OK button to save your definition.
|
|

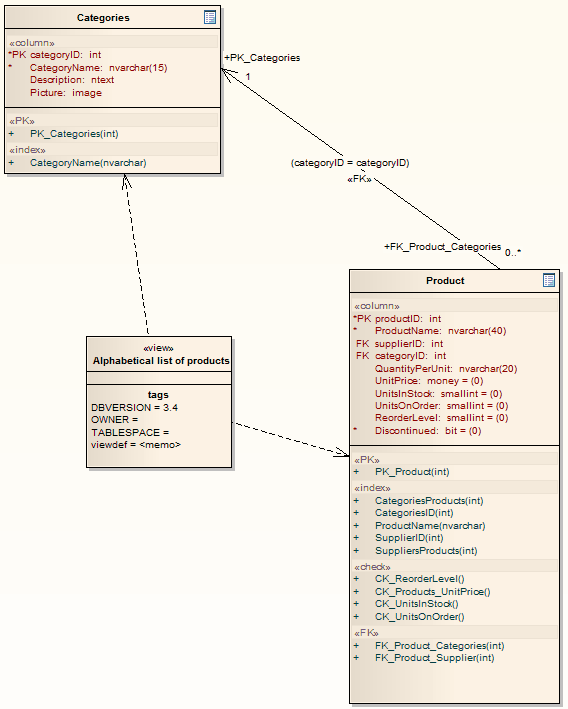

Example
Notes
| • | The View definition and certain other parameters are held as Tagged Values; the View definition is held in the viewdef memo Tagged Value You can select and view the viewdef Tagged Value in the Tagged Values window, and include it in document reports by inserting the valueOf(viewdef) field in the Package::Package Element or Package::Element sections. |
