SysML Model Elements Toolbox

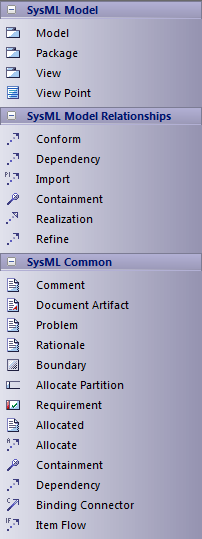

When you are constructing SysML models, you can populate the diagrams with Model, Package and View elements using the icons on the SysML Model pages of the Diagram Toolbox. .
Access Diagram | Diagram Toolbox: More Tools | SysML 1.3 | SysML 1.3 Model Elements
SysML Model Element Objects
Page |
Item |
Action |
|---|---|---|
SysML Model |
Model |
Creates a Package containing a SysML Model.
|
Package |
Groups model constructs in a single unit of containment.
|
|
View |
Creates a stereotyped Package that defines a SysML View of a system, from the perspective of a SysML View Point.
|
|
View Point |
Creates a stereotyped Class that defines a SysML View Point, which specifies the rules and conventions for the construction and use of Views.
|
|
SysML Model Relationships |
Conform |
Establishes a conformance dependency of a View to the defining View Point.
|
Dependency |
Establishes a traceable relationship describing how one element is dependant upon another.
|
|
Import |
Represents a reuse of elements from one model package in another.
|
|
Containment |
Graphically displays ownership of one element within a parent one.
|
|
Realization |
Identifies a design fulfillment of a specification between elements.
|
|
Refine |
Represents a refinement of one element by another.
|
|
SysML Common |
Comment |
Creates a textual annotation that can be attached to a set of elements of any other type. The attachment is created separately, using a Notelink connector.
|
Document Artifact |
Attaches a linked document to the diagram by associating this element with an RTF document.
|
|
Problem |
Documents the failure of model elements to satisfy a requirement.
|
|
Rationale |
Documents the justification for decisions.
|
|
Boundary |
Defines a conceptual boundary, to visually group logically related elements.
|
|
Allocate Partition |
Contains elements deemed to be allocated to the classifier of the partition.
|
|
Requirement |
Specifies the capabilities of the system, or the conditions that it should satisfy.
|
|
Allocated |
Defines the source element being allocated to the target element in an Allocate relationship.
|
|
Allocate |
Relates model elements to formalize a refinement of behavior, structure, constraints or design expectations. The Allocate relationship points from the element being allocated to the element that is the target of the allocation.
|
|
Containment |
Graphically displays ownership of one element within a parent one.
|
|
Dependency |
Establishes a traceable relationship describing how one element is dependant upon another.
|
|
Binding Connector |
Establishes a connection between two parts in a system decomposition.
|
|
Item Flow |
Specifies the items that flow across a connector in an interaction point.
|
