Example Component Diagram

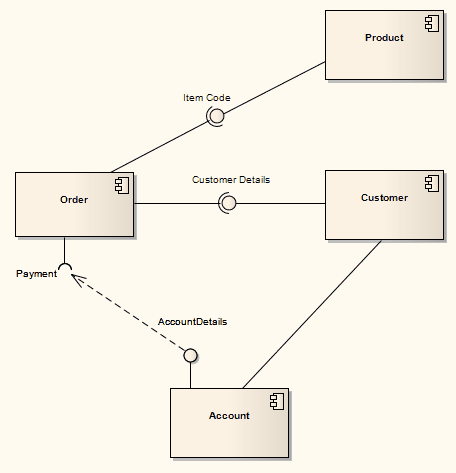

The following diagram demonstrates some components and their inter-relationships.
Assembly connectors connect the provided interfaces supplied by Product and Customer to the required interfaces specified by Order. A Dependency relationship maps a customer's associated account details to the required interface Payment, indicated by Order.
