RTF Document Options

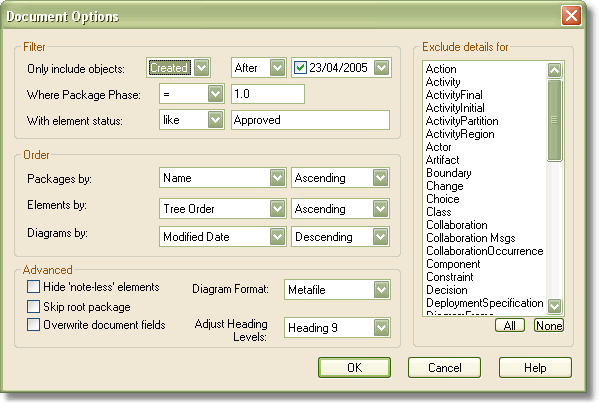

Enterprise Architect's RTF Generator gives you the ability to control many of the various options associated to document generation. The RTF Document Options screen gives you control of these options, for example you can set the filter and order the elements. The Dialog has the following functions:

RTF Generator Options

Control
 Function
Only include objects Allows elements to be filtered according to date created or modified.
Where Package Phase Allows elements to be filtered according to the value of the package phase field.
With element status Allows elements to be filtered according to its status.
Packages by Orders packages in the generated documentation in either ascending or descending order of Name, Tree Order, Modified Date or Created date.
Elements by Orders elements in the generated documentation in either ascending or descending order of Name, Tree Order, Modified Date or Created date.
Diagrams by Orders diagrams in the generated documentation in either ascending or descending order of Name, Tree Order, Modified Date or Created date.
Hide 'note-less' elements Excludes all elements without notes from the documentation.
Diagram Format Sets the diagram format for the images included within the documentation to either Metafile or Bitmap.
Skip root package Excludes the parent package from the documentation and includes only the child packages.
Overwrite document fields When this option is unchecked, fields defined in a document section are generated with the appropriate values populated in these fields. Turning on this option will replace the fields with actual text.
Adjust Heading Levels Setting this option will allow the RTF Generator to automatically adjust template headings based on the model depth
Exclude details for Excludes all elements of the selected type or types to be excluded from the generated document.
OK Applies the options to the documentation to be generated.
Cancel Closes the dialog without applying the options.
Help Opens the help to this page.
