Managing Baselines

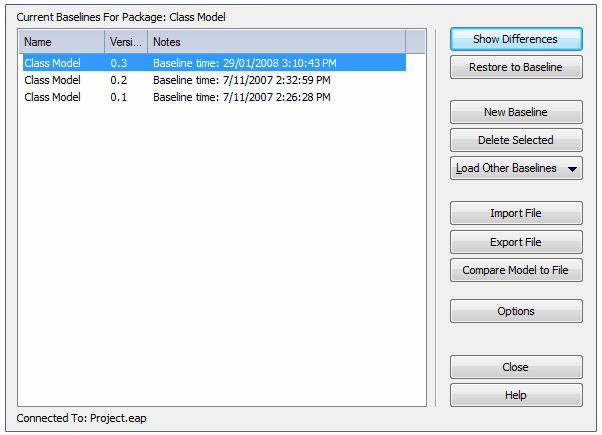

To open the Manage Baselines dialog, right-click on the package at the head of the appropriate model branch and select the Package Control | Manage Baselines context menu option. Enterprise Architect Corporate Edition (and above) provides a facility to "Baseline" (snapshot)


Manage Baseline

Item Functionality
Current Baselines The list of baselines for the current model branch.
Show Differences Runs the compare utility on the selected baseline and the current model branch.
Restore to Baseline Completely restore the model branch from the selected Baseline.
Create New Baselines Creates a new baseline.
Delete Selected Deletes the selected baseline.
Load other Baselines Display a drop-down menu that enables you to load Baselines from another model, in either an .EAP file or a DBMS file.
Import File Import an XMI file from the file system as a baseline for this current model branch.
Export File Export the selected Baseline to an XML file on disk.
Compare Model to File Compare the selected model branch with an XML 1.1 file on disk. A browser displays, which you use to locate the file.
Options Set filters to make the comparison more specific.
Help Opens the help file on this page.
Close Closes the Manage Baselines dialog.
